HOME >>Equipment >>Test Equipment

Lathed & milled equipment
Grinding Equipment
Testing Equipment
Test Equipment
Other
Ultrafast laser CNC

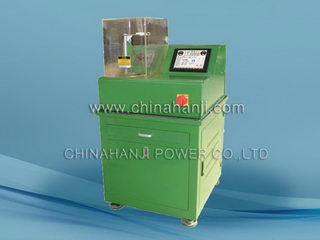

  Parts NO. : KC-200


Function and Features

◎Industrial computer, windows operating system;
◎ Own database, you can query, store, modify, test data and generate a new database;
◎ Closed-loop control, can automatically adjust the control rail pressure, rail pressure is stable, fluctuations in the value ± 1Mpa;
◎You can start testing common rail injector injection amount;
◎ You can test the maximum fuel injection amount of Common rail injector
◎You can Pre-test the common rail injector injection amount





Function and Features

◎ You can test common rail injector fuel return;
◎ You can test piezoelectric ceramics common rail injector
◎You test uniformity of the common rail injector fuel injection quantity;
◎ Common Rail injection times and the injection time can be set freely;
◎ Import flow sensor



Technical Parameters

◎ Having overpressure protection function, automatically shut down when the rail pressure is greater than 2000bar;
◎ To complete the Common Rail Injector Test Running
◎ Compressor oil temperature control using forced cooling system (optional);
◎ It supports Internet connectivity, enabling remote control device (optional);
◎ Plexiglass protective doors, safer operation, easy observation;
◎ Oil pressure: 0 ~ 2000KG
◎ Three-phase power supply: 380V / 50HZ or upon request
◎ Output power 2.2KW
◎ Total Size (MM): 85 * 85 * 150;
◎Net Weight (KG): 300.








Parts NO. : KC-806



Function and Features

1.Industrial computer: Windows operating system
2. Built-in database: querying, storing, modifying, testing data and generating a new database.
3. Closed-loop control: Automatically adjusting the rail pressure control, rail pressure stable, fluctuation values-\+1Mpa4.
4.Testing starting fuel injection quantity of common rail injector
5.Testing the maximum fuel injection quantity of common rail injector
6. Testing pilot injection quantity of common rail injector





Function and Features

7. Testing the oil return amount of common rail injector
8. Testing the uniformity of injection
9. Rail pressure shown in real time on THE liquid crystal display
10.Testing the proportional electromagnetic valve performance of common rail pump
11.Testing the leakproofness of common rail pump and injector
12.Testing fuel feeding of common rail pump
13.Testing Piezoelectric ceramic common rail injector
14 .Testing rail pressure sensor performance
15. Driving signal pulse width and adjustable frequency
16. Injection times of common rail injector and injection period adjustable as you need
17. With the overpressure protection function:
Automatically shut down when the rail pressure is greater than 2000bar
18. To be completed the running-in test of common rail pump and common rail injector
19. Plexiglass protective door, Safer operation and easy observation.。
20. Oil temperature control using forced cooling compressor system
21. supporting Internet connectivity and enabling remote control device



Technical Parameters

Peking control system
Bosch CP3.3 Common Rail Pump
Bosch DRV Valve, Pressure Transducer
Imported Flow Transducer
Power:11KW or15KW9According to customer needs)
Revolution : 0-1500r/min
Host-centric high :125mm
Capacity of Tank:50L
High Pressure Fuel Supply :0-200MPa
Electric Power:380V 50HZ
Test oil filtration precision: 3M
Dimension:1750*800*1400mm








Parts NO. : KC-200AS


Function and Features

1:industrial computer, windows operating system
2:it comes with a database, you can query, store, modify the detection data and generate a new database.
3:closed loop control, can automatically adjust the control of rail pressure, rail pressure stability, volatility of -\+1Mpa
4:it can test the common rail injector fuel injection quantity
5;it can test the maximum fuel injection of common rail injector
6:it can test the pre injection volume of common rail injector
7:it can test the fuel oil return





Function and Features

8:it can test the uniformity of the fuel injection quantity of common rail injector
9:liquid crystal display real-time display track pressure
10:test the piezoelectric ceramic common rail injector
11:detect the performance of rail pressure sensor
12:rive signal pulse width and frequency can be adjusted
13:common rail injection timing and injection time can be freely set
14:with overpressure protection function, rail pressure is greater than 2000bar automatic shutdown
15:the running in test of common rail pump and common rail injector can be completed.
16:With organic glass door, safe operation, easy observation.



Technical Parameters

BOSCH CP3.3 common rail pump
BOSCH DRV valve, and pressure sensor
Inlet flow sensor
Host power 5.5KW
Speed 0-1500r/min
Tank volume 30L
High pressure oil supply 0-200MPa
The power of 380V 50HZ
Test oil filtration accuracy of 3M
Device size 1250*900*1550mm











Parts NO. : KC-708



Function and Features

1:Industrial PC, Windows Operating System
2:Built-in database, it can store, modify, query, testing data and generate a new database
3:Closed-loop control, it can automatically adjust the rail pressure control, rail pressure stable, fluctuating value - \ + 1 mpa
4:It can test common rail injector’s starting fuel injection quantity
5:It can test common rail injector’s max fuel injection quantity
6:It can test common rail injector’s pre-injection quantity
7:It can test injector’s oil return amount
8:It can test uniformity of injection





Function and Features

9:LCD real-time display rail pressure
10:To detect common rail pump proportional magnet valve performance
11:It can test seal of common rail pump and common rail injectors
12: It can test common rail pump oil return and oil supply
13:It can test electroceramics common rail injectors
14:To detect the performance of the rail pressure sensor
15:It can adjust Pulse Width and Frequency of the Drive Signal
16:The number of injections of Common Rail fuel injection quantity & Injection time can be set freely
17:With functions of overpressure protection, automatic stop when rail pressure is greater than 2000 bar
18:To complete the running test of common rail pump & common Rail Injector.
19:Organic glass protective door, safe operation, easy observation.



Technical Parameters

Bosch DRV, Bosch Pressure sensor
Bosch CP1.1 Common Rail Pump
Taian Control System
Console Power 7.5KW
Rotation Rate 0-1000r/min
Height of center 125mm
Fuel Tank Capacity 50L
High pressure fuel supply Rate 0-160MPa
Power 380V 50HZ
Test Oil filtration fineness 3M
Machine Size 1750*800*1400mm










Parts NO. : KC-200A


Function and Features

1:Industrial computer, Windows operating system
2:Having own database,you can query, store, modify the detection data and generate a new database.
3:The closed-loop control can automatically adjust the control of rail pressure, rail pressure stability,and the The fluctuation value is controlled within -\+1Mpa.
4:The fuel injection quantity of common rail injector can be tested.
5:Maximum fuel injection quantity of common rail injector can be tested.
6:Pilot Injection quantity of common rail injector can be tested.





Function and Features

7:Return Fuel quantity of common rail injector can be tested.
8:Uniformity of fuel injection quantity of common rail injector can be tested.
9:LCD real-time displays the pressure of track.
10:The piezoelect ceramic common rail injector can be tested.
11:The pulse width and frequency of drive signal can be adjusted
12:Injection times and spray time of common rail fuel injection can be freely set.
13:Ex-high pressure protection function,automatic stop when the rail pressure is greater than 1600bar.
14:Running-in test of the common rail injector can be done
15:Organic glass door let the operation more safe, the observation more easy.



Technical Parameters

Power 2.2KW
Speed 0-1500r/min
Center High 125mm
Tank Volume 30L
Fuel Delivery 0-160MPa
Power Supply 380V 50HZ
Fuel filter precision test 3M
Dimension 1250*900*1550mm












Equipment Name : Fuel Injection Pump Test Bench

Processing range : Distribution of VE type pump, fuel-injection quantity of in-line fuel injection pump, pump cavity pressure for measuring, debugging, etc

Processing accuracy : Compliance with the JBT9734 industry standard



            Processing advantages :Frequency control, high precision measurement; Constant temperature control, rotation speed, counting, air pressure, advance Angle LED digital display.





Equipment Name :Diesel engine bench test equipment (dynamometer instruments and equipment etc.)

Processing range : Diesel engine's emission, torque, power testing & debugging, etc.. Providing the diesel engine's maintenance service and performance testing, etc.

Processing accuracy : Compliance with the industry standard



            Processing advantages :Complete testing equipment & the technical cooperation support of domestic engine factory.
